Pallet Wrapper Not Rotating
If a pallet wrapper powers up but will not rotate, starts then stops, hesitates under load or faults when the cycle begins, the issue usually sits inside the drive, safety, sensor, control or turntable system.
Need active support? View our pallet wrapper repair, emergency breakdown and machinery servicing pages.
- ✓ Turntable not turning
- ✓ Wrapper faults on cycle start
- ✓ Drive, motor and sensor diagnosis
- ✓ UK pallet wrapper engineer support
A Non-Rotating Wrapper Is A Production Fault, Not A Guessing Game
A pallet wrapper can look healthy because the control panel lights up. That does not mean the machine is ready to rotate. Rotation depends on a chain of conditions: safety circuits, sensors, motor control, drive transmission, turntable condition, load position and machine logic.
What Sites Usually See
The fault normally appears as a simple symptom: the table will not move. The cause is rarely visible from the outside. That is why replacing parts without diagnosis can waste time and still leave the machine unreliable.
- ✕ Machine powers up but the turntable does not move.
- ✕ Wrapper starts rotating then stops or faults.
- ✕ Turntable hesitates under pallet load.
- ✕ Machine rotates manually but not in auto cycle.
- ✕ Operators keep resetting the machine to get pallets out.
The Commercial Reality
If the wrapper is not rotating, dispatch is exposed. Pallets either wait, get hand-wrapped badly, or operators start working around the machine. That creates downtime, unstable loads, labour drag and repeat breakdown pressure.
Excelerate diagnoses the rotation fault properly so the site knows whether it is dealing with a drive issue, sensor fault, safety circuit issue, mechanical wear or a control problem.
Common Symptoms When A Pallet Wrapper Will Not Rotate
Different symptoms point to different areas of the machine. We use the failure behaviour to narrow the investigation before replacing parts.
| Observed Symptom | Likely Fault Area | Why Engineer Diagnosis Matters |
|---|---|---|
| Machine powers on but turntable does not move | Safety circuit, drive enable, motor control or start logic | The machine may be blocking rotation deliberately because a condition has not been satisfied. |
| Turntable rotates briefly then stops | Sensor input, inverter fault, overload, obstruction or mechanical resistance | The stopping point and fault timing help separate electrical faults from mechanical drag. |
| Turntable hesitates or struggles under load | Drive belt, chain, motor, reducer, bearing wear or excessive pallet weight | The wrapper may run empty but fail under real operating load. |
| Machine rotates manually but not in automatic cycle | Cycle logic, pallet detection, home sensor, height sensor or programme condition | Manual movement does not prove the automatic wrapping sequence is healthy. |
| Machine faults at the same point every cycle | Home position sensor, proximity sensor, cable fault or repeatable mechanical resistance | Repeatable faults usually leave a pattern that can be traced on site. |
| Turntable is noisy, uneven or jerky | Turntable bearing, drive ring, debris, chain tension, belt condition or alignment | Noise and uneven motion often appear before full rotation failure. |
If the machine is already stopped, this is no longer a theory problem. It needs controlled fault diagnosis.
Book A Pallet Wrapper EngineerReal Fault Areas We Investigate
We give customers enough clarity to understand the fault pattern, but the machine still needs testing. Rotation faults can look similar while coming from completely different parts of the system.
- ✕ Emergency stop, guarding or safety circuit faults
- ✕ Turntable home sensor or proximity sensor problems
- ✕ Pallet detection or height detection issues
- ✕ Drive belt, chain, wheel or transmission wear
- ✕ Motor, gearbox, reducer or inverter faults
- ✕ Debris, film build-up or obstruction under the turntable
- ✕ Turntable bearing wear or uneven rotation
- ✕ Excessive pallet weight, poor load position or floor issue
- ✕ Cable damage, loose connections or intermittent inputs
- ✕ Incorrect mode, programme setting or operator workaround
These faults should not be guessed at. The wrong fix can make a simple stoppage more expensive.
View Pallet Wrapper RepairWhat We Check During A Rotation Fault Visit
The aim is not to publish a repair manual. The aim is to show the level of diagnosis required before anyone starts changing parts.
Turntable System
Rotation behaviour, mechanical resistance, table movement, drive contact and signs of drag are reviewed under real operating conditions.
Drive Components

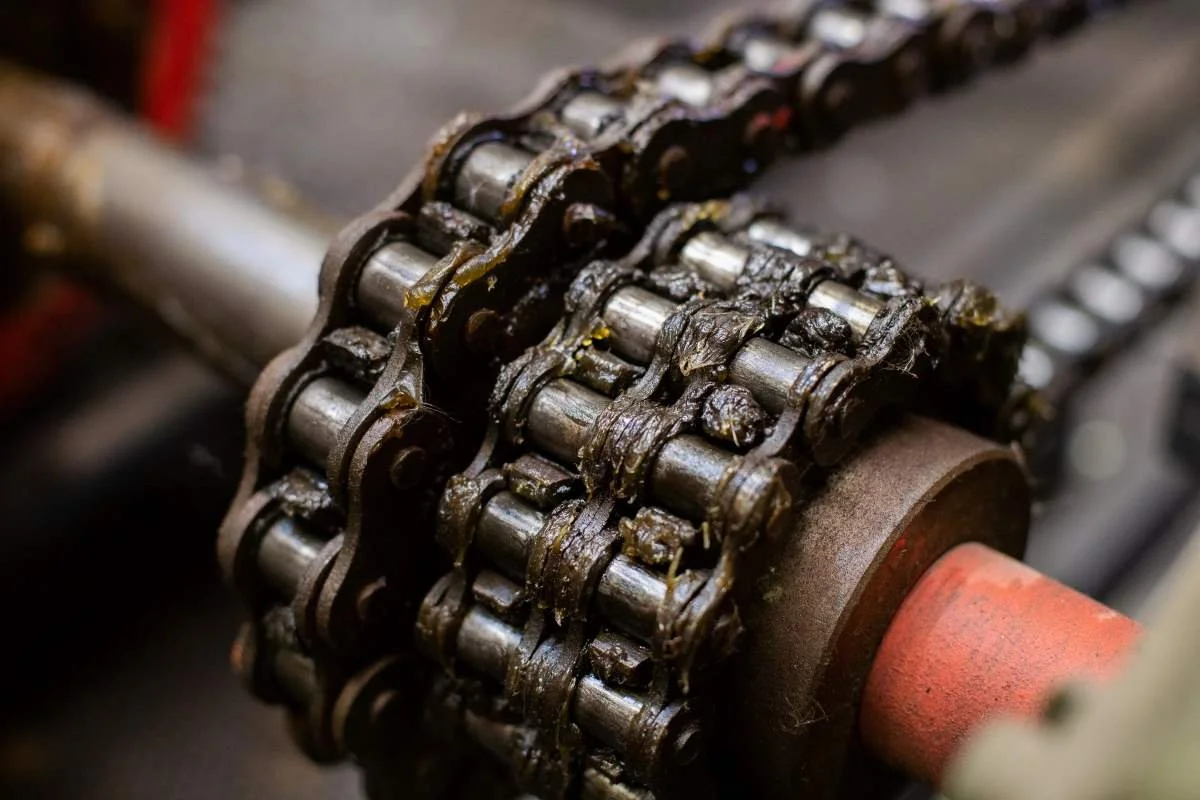

Chains, belts, drive wheels, reducers and transmission parts are checked for wear, slip, poor tension or damage.
Electrical Control
Start signals, motor control, inverter behaviour, fault messages and control logic are assessed before parts are condemned.
Sensors & Safety

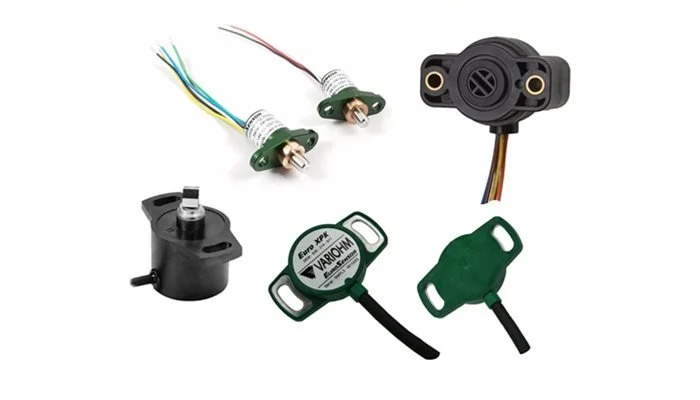

Home position, pallet detection, height detection, safety circuits and guarding inputs can all prevent rotation.
Why The Wrapper May Run Empty But Fail With A Pallet
This is common and it matters. A wrapper that rotates empty is not automatically healthy. Real diagnosis has to test the machine under the conditions where the fault appears.
Load Changes Everything
Pallet weight, pallet position, floor condition, turntable resistance and drive wear can all appear only when the machine is under operating load. A table that moves freely empty may hesitate, slip or fault once a real pallet is added.
- ✓ Empty-table testing can miss drive weakness.
- ✓ Heavy pallets expose bearing and drive faults.
- ✓ Poor pallet position can create uneven load on the table.
- ✓ Mechanical drag can trigger electrical protection.
The Useful Question
Not simply: “does it rotate?”
The correct question is: does it rotate consistently under the same conditions your site needs it to work in?
Our Diagnosis Process
We keep the process controlled. No guesswork, no blind part-swapping, no pretending a reset has solved a mechanical or electrical fault.
Define The Failure
We identify when the wrapper stops rotating: start-up, under load, mid-cycle, home position, manual mode or automatic sequence.
Check The Safe Conditions
Safety circuit, guarding, emergency stops, machine state and obvious obstruction checks are completed before deeper testing.
Inspect Drive Behaviour
We assess mechanical resistance, drive wear, turntable movement and whether the machine is struggling, slipping or stalling.
Review Sensors & Signals
Home position, pallet detection and relevant sensor signals are reviewed to understand whether the machine is being prevented from rotating.
Trace Control Faults
Fault codes, inverter behaviour, motor control and start logic are interpreted against the real operating symptom.
Recommend The Correct Fix
You get a practical engineer-led recommendation based on the machine condition, not a generic online checklist.
Related Fault Diagnosis Pages
Rotation faults often sit close to sensor faults, mechanical wear, emergency breakdowns and wider wrapper diagnostics. These pages keep the technical structure connected.
Pallet Wrapper Diagnostics
Fault-finding across mechanical, electrical, film and operational wrapper issues.
View diagnosticsMechanical Wear Identification
Recognising wear patterns before they become repeat breakdowns.
View wear guidanceEmergency Wrapper Repair
Support for urgent machine stoppages, breakdowns and dispatch-critical faults.
View emergency repairPreventative Maintenance
Planned inspections to reduce avoidable faults, downtime and machine drift.
View maintenancePallet Wrapper Repair
Repair support for pallet wrappers with mechanical, electrical or wrapping faults.
View repairRobopac Servicing
Robopac wrapper service, inspection, support and fault diagnosis.
View Robopac supportRoot Cause Investigation
Finding the condition behind repeat faults instead of only replacing failed parts.
View root causeMachinery Servicing
UK machinery service support for pallet wrappers and wider packaging equipment.
View servicingFAQ
Why is my pallet wrapper not rotating?
Why does my pallet wrapper rotate for a few seconds then stop?
Can a sensor stop a pallet wrapper from rotating?
Should operators keep resetting the wrapper?
Do Excelerate repair wrappers that will not rotate?
Wrapper Not Rotating? Get The Fault Diagnosed Properly.
If your pallet wrapper has stopped rotating, is faulting on start-up or only runs after repeated resets, the site needs more than a guess. Excelerate can inspect the machine, identify the likely fault area and recommend the correct repair route.
