Stretch Wrapper Keeps Snapping Film

If your pallet wrapper keeps snapping film, the film is not automatically the fault. Repeated film breaks usually point to tension control, carriage condition, pre-stretch behaviour, load contact, clamp operation or machine setup.

Need active support? View our pallet wrapper repair, emergency breakdown and machinery servicing pages.

Call 01604 644100 Book Engineer Diagnosis
  • ✓ Film snapping mid-cycle
  • ✓ Carriage and roller diagnosis
  • ✓ Tension, brake and clutch checks
  • ✓ UK pallet wrapper engineer support

Film Snapping Is A System Fault Until Proven Otherwise

A wrapper does not snap film for no reason. Something is exceeding the film’s usable limit, damaging it before application, dragging it through the carriage incorrectly, or forcing it against a load profile it cannot survive.

What Sites Usually See

The visible fault is simple: the film breaks and the pallet is left unfinished. The real fault is usually hidden inside the interaction between machine, film, load and operator routine.

  • ✕ Film snaps at the same point every cycle.
  • ✕ Film tears near the carriage or roller path.
  • ✕ Film breaks when the pallet corner comes round.
  • ✕ Film snaps during clamp, cut or start sequence.
  • ✕ Operators reduce settings until pallets become loose.

The Commercial Reality

Constant film snapping is not a small nuisance. It slows dispatch, wastes film, damages operator confidence and encourages poor workarounds.

The wrong fix is usually expensive: thicker film, lower tension, more wraps, more labour and no actual fault removal.

Common Causes When A Stretch Wrapper Keeps Snapping Film

These are common fault areas we consider during diagnosis. The point is not to publish a repair manual. The point is to show why this needs a proper inspection rather than guesswork.

Observed Symptom Likely Fault Area Why Engineer Diagnosis Matters
Film snaps as soon as the cycle starts Clamp, start tension, brake release, threading or initial pull force The machine may be shocking the film before stable wrapping begins.
Film breaks near the carriage Worn rollers, seized bearings, contamination, damaged roller edge or incorrect film path The film may be weakened before it ever reaches the pallet.
Film snaps on pallet corners Sharp load profile, poor pallet condition, excessive force or wrong film/load pairing Corner breaks can be load-led, machine-led or both.
Film tension changes during the wrap Load cell, dancer arm, clutch, brake, motor control or carriage feedback issue Inconsistent force can overload the film without any visible mechanical breakage.
Film tracks sideways then tears Carriage alignment, roller wear, incorrect threading or uneven pre-stretch movement Tracking faults often create repeated edge tearing and unpredictable breaks.
Film only breaks on certain pallets Load hazard, board damage, product overhang, tray edge or inconsistent pallet build The wrapper may be healthy but the load presentation may be outside the film’s tolerance.
Film breaks after a recent film change Film specification mismatch, stretch profile, puncture resistance or machine setting mismatch A cheaper or different film may need different settings, or may not suit the wrapper at all.

If film snapping has become repeatable, the machine should be inspected before the site compensates with more film and worse pallets.

Book A Pallet Wrapper Engineer

Fault Areas We Investigate

A good diagnosis separates film failure from machine failure. We look at the whole wrapping system, not only the roll on the carriage.

  • ✕ Film threaded incorrectly through the carriage
  • ✕ Excessive wrap tension or pre-stretch force
  • ✕ Damaged, dirty, worn or seized carriage rollers
  • ✕ Brake, clutch or dancer arm control issues
  • ✕ Load cell calibration or unstable tension feedback
  • ✕ Clamp, cut or film tail faults
  • ✕ Film tracking, edge nicking or carriage alignment faults
  • ✕ Sharp load corners, broken pallets or product overhang
  • ✕ Sensor faults affecting the wrap sequence
  • ✕ Film specification mismatch against machine and load

The wrong fix is normally to fit thicker film and move on. That may hide the fault, but it also locks in avoidable cost.

View Pallet Wrapper Repair

What We Check During A Film Snapping Visit

The useful work happens at the machine. We inspect the conditions that control film force, film path, film contact and load interaction.

Engineer diagnosing stretch wrapper film snapping fault

Machine Behaviour

We observe when the film breaks, where it breaks and what the machine is doing at the exact point of failure.

Pallet wrapper drive and mechanical inspection

Mechanical Control

Rollers, belts, bearings, carriage movement, brake action and mechanical resistance are checked for drag or shock loading.

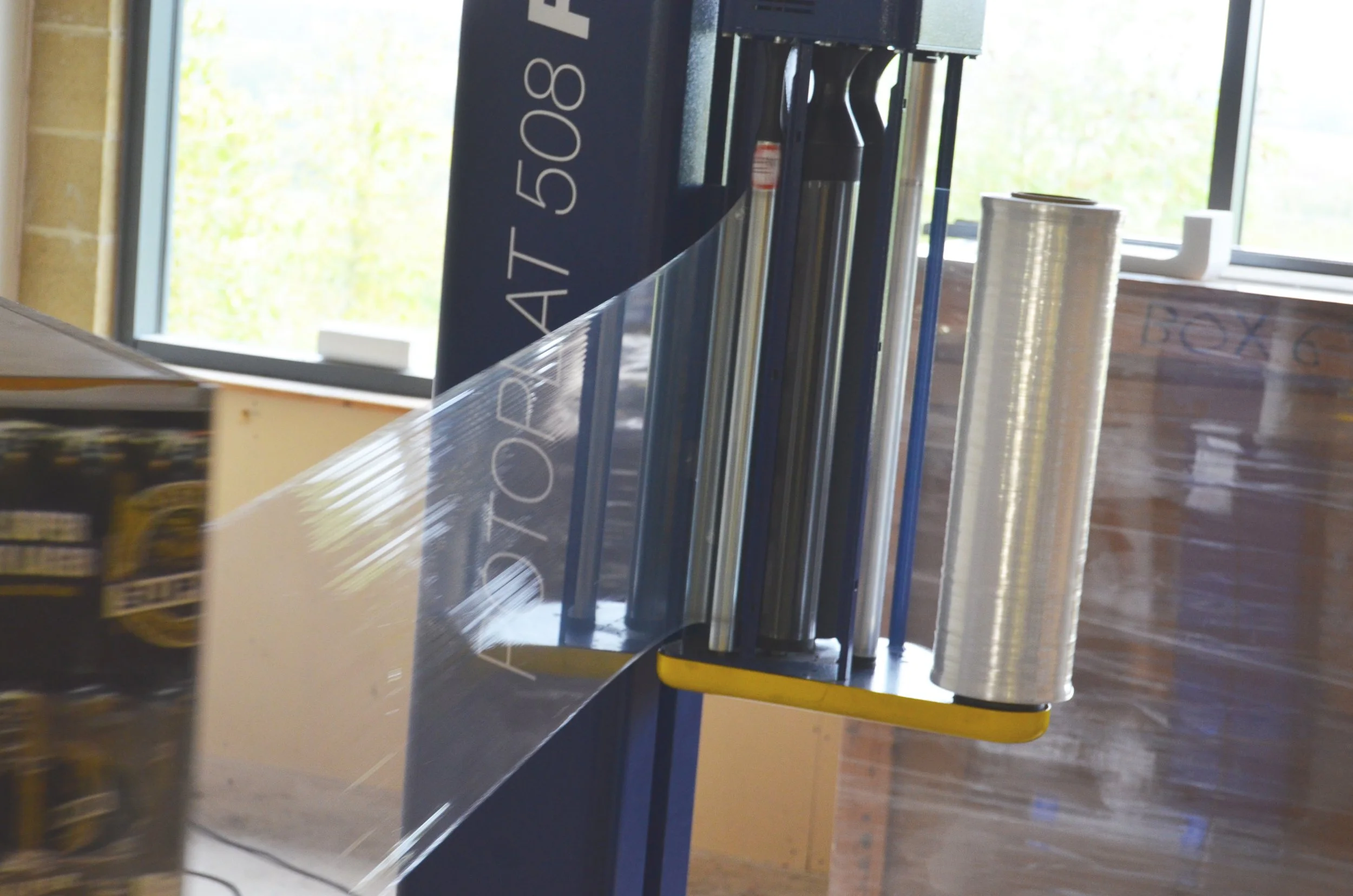

Pallet wrapper control fault and tension diagnosis

Tension Control

Pre-stretch, secondary tension, load cell feedback, clutch behaviour and control response are reviewed against the film being used.

Stretch wrapper sensor and sequence fault diagnosis

Sequence & Sensors

Clamp, cut, home position, pallet detection and sequence timing can all affect how force is applied to the film.

Why The Film May Not Be The Problem

Film is often blamed because it is the visible failure point. But the film may be doing exactly what it should: exposing a machine or load condition that is no longer under control.

The Hidden Cost Of Guessing

Moving to a thicker film can reduce snapping, but that does not prove the original film was wrong. It may only mean the thicker film is absorbing poor setup, worn rollers or unstable tension control.

  • ✓ More film can hide a carriage fault.
  • ✓ Lower tension can hide bad load contact.
  • ✓ Extra revolutions can hide poor containment.
  • ✓ Operator workarounds can hide machine drift.

The Useful Question

Not simply: “is the film strong enough?”

The correct question is: is the wrapper applying the right film, through the right path, at the right force, against the right load?

View Wrapper Diagnostics

Our Diagnosis Process

We keep diagnosis controlled. No blind part-swapping. No generic “turn the tension down” advice. No pretending the issue is solved because one pallet wrapped successfully.

Define The Break Point

We identify whether film breaks at start-up, on corners, through the carriage, during vertical travel, clamp release or cut-off.

Inspect The Film Path

Threading, roller condition, alignment, debris, edge damage and carriage contact points are checked before blaming the film.

Review Tension Control

We assess how the machine controls force through pre-stretch, brake, clutch, load cell or dancer arm behaviour.

Check Load Contact

We inspect pallet corners, board condition, product overhang, sharp edges, trays and repeat contact points.

Test Under Real Conditions

The machine needs to be assessed against the loads, film and operating routine your site actually uses.

Recommend The Correct Fix

You get a practical engineer-led recommendation based on the wrapping system, not a generic online checklist.

Related Fault Diagnosis Pages

Film snapping often sits close to carriage faults, sensor issues, mechanical wear and wider wrapper setup problems. These pages keep the technical structure connected.

Pallet Wrapper Diagnostics

Fault-finding across mechanical, electrical, film and operational wrapper issues.

View diagnostics

Mechanical Wear Identification

Recognising wear patterns before they become repeat breakdowns.

View wear guidance

Pallet Wrap Optimisation

Improving film usage, containment, machine setup and cost per pallet.

View optimisation

Emergency Wrapper Repair

Support for urgent machine stoppages, breakdowns and dispatch-critical faults.

View emergency repair

Pallet Wrapper Repair

Repair support for pallet wrappers with mechanical, electrical or wrapping faults.

View repair

Robopac Servicing

Robopac wrapper service, inspection, support and fault diagnosis.

View Robopac support

Root Cause Investigation

Finding the condition behind repeat faults instead of only replacing failed parts.

View root cause

Machinery Servicing

UK machinery service support for pallet wrappers and wider packaging equipment.

View servicing

FAQ

Why does my stretch wrapper keep snapping film?
Repeated snapping can be caused by excessive tension, incorrect pre-stretch, poor threading, worn rollers, brake or clutch faults, load cell calibration issues, sharp pallet edges, clamp problems, sensor faults or a film specification mismatch.
Is the pallet wrap always the problem?
No. Film quality can matter, but the wrapper, carriage, tension control and load profile should be checked before blaming the roll. Many snapping issues are caused by machine condition or setup.
Can worn rollers make film snap?
Yes. Worn, damaged, dirty or seized rollers can drag, crease, nick or overload the film as it moves through the carriage. That can create repeated breaks during the cycle.
Can a load cell or tension system fault cause film breaks?
Yes. If the machine uses load cell, dancer arm, clutch or brake control to regulate tension, poor calibration or unstable control can apply inconsistent force and push the film beyond its usable limit.
Do Excelerate repair wrappers that keep snapping film?
Yes. Excelerate provides pallet wrapper repair, fault diagnosis, servicing and preventative maintenance for wrappers with film snapping, carriage, roller, tension, sensor, brake, clutch and pre-stretch issues.

Film Keeps Snapping? Diagnose The Wrapper Properly.

If your stretch wrapper is constantly snapping film, the site needs more than a thicker roll and a lower tension setting. Excelerate can inspect the machine, identify the likely fault area and recommend the correct repair or optimisation route.
