Pallet Wrapper Sensor Fault
If a pallet wrapper is showing sensor faults, failing to detect pallets, missing load height, stopping mid-cycle or refusing to start, the issue may sit around photoeyes, photocells, proximity sensors, limit switches, safety circuits or damaged wiring.
Need active support? View our pallet wrapper repair, emergency breakdown and machinery servicing pages.
- ✓ Photoeye and photocell faults
- ✓ Proximity and limit switch issues
- ✓ Film break and height detection faults
- ✓ UK pallet wrapper engineer support
Sensor Faults Can Stop The Whole Wrapping Sequence
Pallet wrappers rely on sensors to confirm position, presence, movement, safety state and wrapping sequence. When one input is missing or unstable, the machine may refuse to start, stop mid-cycle or wrap incorrectly.
What Sites Usually See
Sensor faults often appear intermittent. The wrapper may work for one pallet, fault on the next, or only fail when the line is running at production speed.
- ✕ Machine says no pallet is present.
- ✕ Wrapper stops part-way through the cycle.
- ✕ Carriage travels too high or too low.
- ✕ Turntable or arm will not start.
- ✕ Safety or guard circuits will not reset.
The Commercial Reality
Sensor faults create uncertainty. Operators retry cycles, move pallets around, wipe sensors, reset the machine and eventually build manual workarounds into a process that should be controlled.
If the same fault keeps returning, the machine needs proper diagnosis.
Common Pallet Wrapper Sensor Faults
The visible error may say “sensor fault”, but the cause can be optical, electrical, mechanical, safety-related or sequence-related.
| Observed Symptom | Likely Sensor Area | Why Engineer Diagnosis Matters |
|---|---|---|
| Pallet not detected | Photoeye, photocell, reflector, dirty lens or poor alignment | The machine may be blocking the cycle because the pallet-present input is missing. |
| Load height read incorrectly | Film overwrap sensor, height sensor, top-of-load photoeye or carriage travel input | Poor height detection can cause overwrap errors, poor coverage or carriage overtravel. |
| Turntable or arm will not start | Proximity sensor, home sensor, safety input, turntable position or guard circuit | The machine may be waiting for a valid position or safety confirmation before allowing movement. |
| Machine stops mid-cycle | Intermittent sensor input, damaged cable, vibration, loose plug or sensor dropout | The signal may be present at rest but unstable during movement. |
| Film break alarm appears incorrectly | Film break sensor, film movement detection, reel sensor or sensitivity setting | The machine may think the film has broken even when it has not. |
| Safety circuit will not reset | Light curtain, safety gate, emergency stop, relay or reset input | Safety circuits must be diagnosed carefully and not bypassed. |
If the machine is repeatedly faulting on sensors, the correct fix may be cleaning, alignment, wiring repair, component replacement or sequence diagnosis. Guessing wastes line time.
Book A Pallet Wrapper EngineerFault Areas We Investigate
A pallet wrapper sensor fault should be tested as part of the wider machine sequence. The sensor may be working, but the machine may not be receiving the correct signal at the correct point in the cycle.
- ✕ Dirty, damaged or misaligned photoeyes and photocells
- ✕ Reflector position, contamination or poor target return

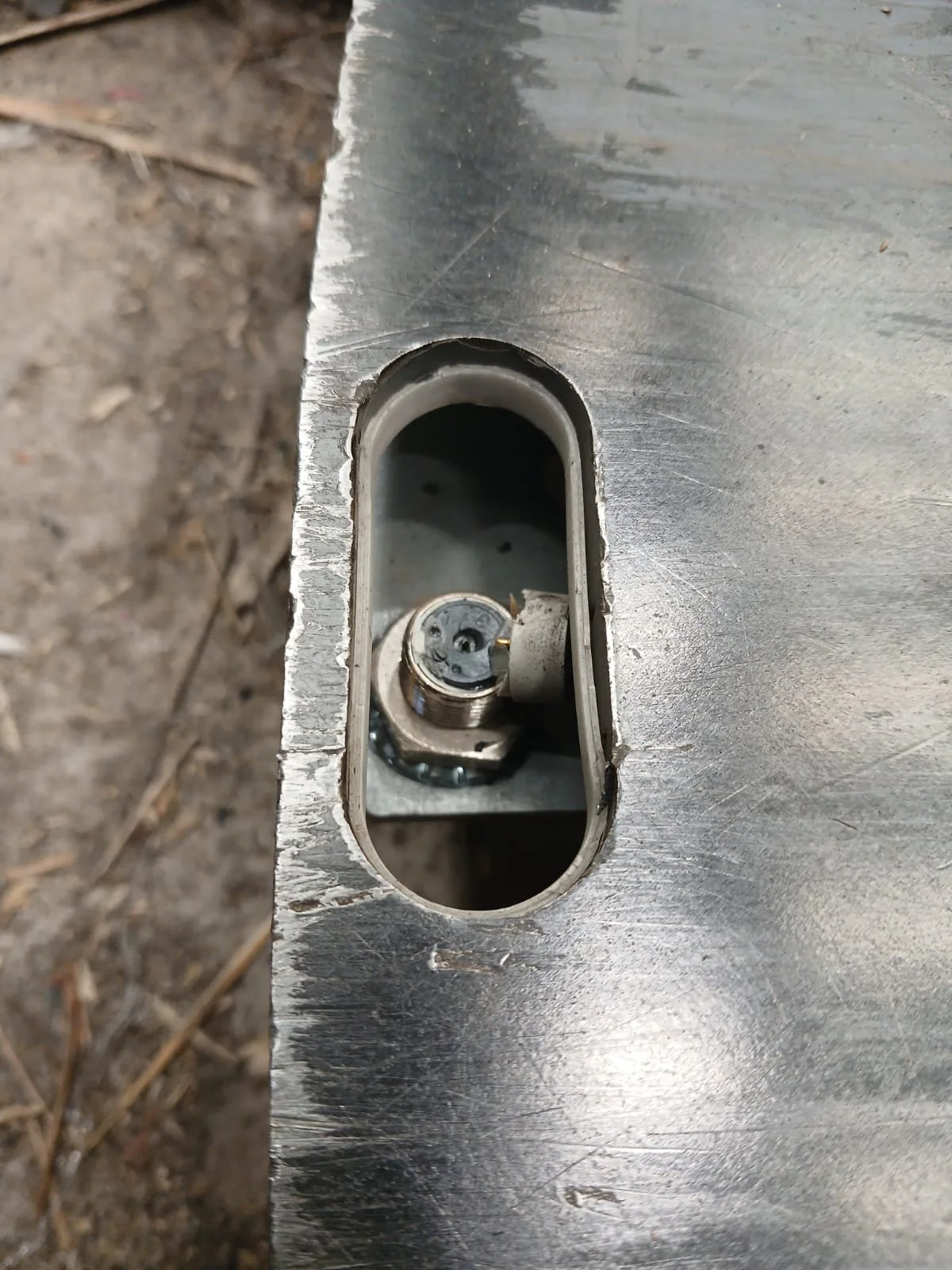

- ✕ Proximity sensor faults and turntable home position issues
- ✕ Upper and lower carriage limit switch faults
- ✕ Film break or end-of-roll detection faults
- ✕ Height detection and film overwrap sensor issues
- ✕ Safety light curtain, guard and reset circuit faults
- ✕ Loose plugs, damaged cables and intermittent sensor inputs
- ✕ Sensor brackets moved by impact or vibration
- ✕ Control logic or sequence conditions blocking movement
Bypassing sensors is not a fix. On wrapping machines, sensors control movement, safety, film application and cycle logic.

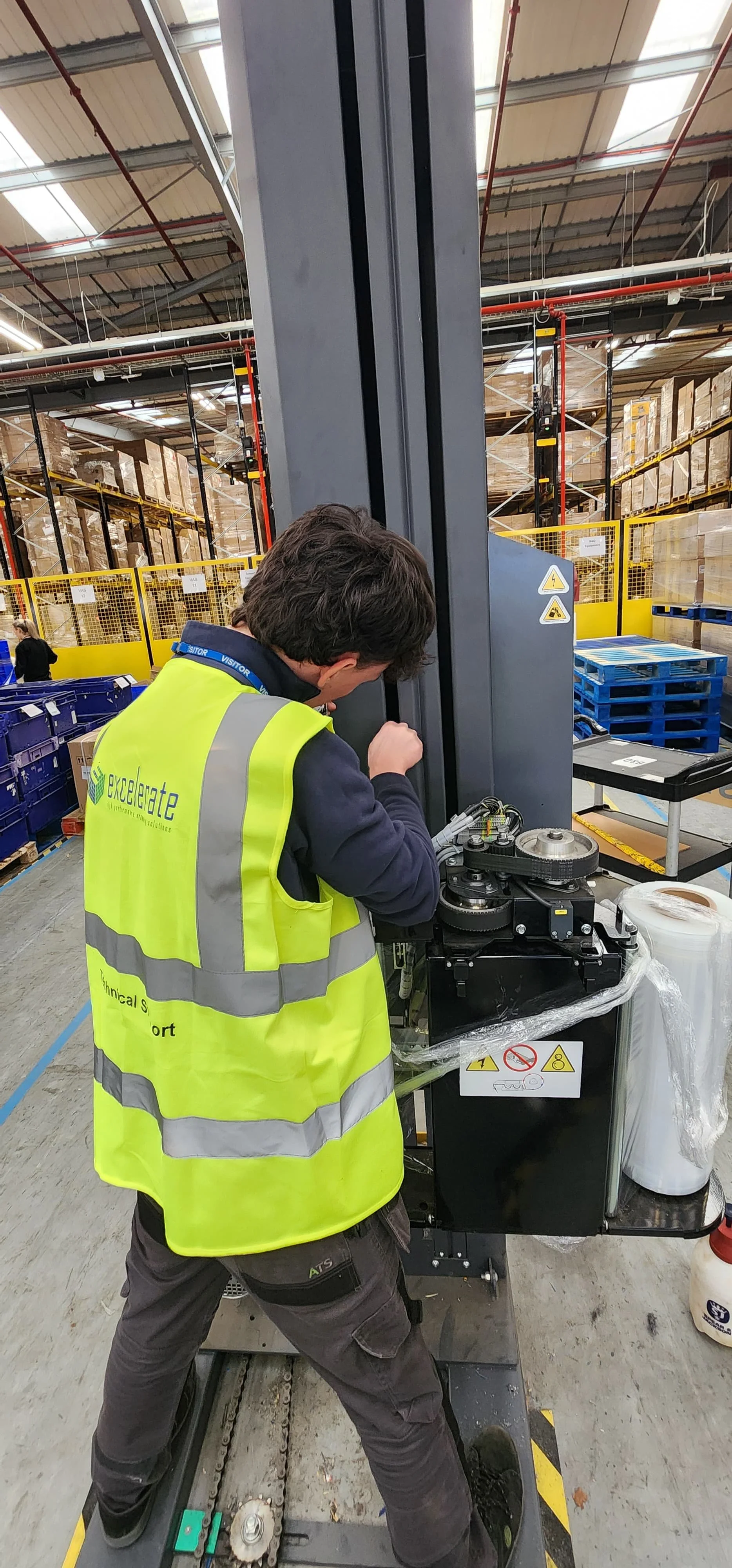

View Pallet Wrapper RepairWhat We Check During A Sensor Fault Visit
We inspect the sensor condition, signal behaviour and the machine sequence around it. A sensor fault can be caused by the sensor itself, the target, the wiring or the logic waiting for that signal.
Sensor Condition
Photoeyes, photocells, lenses, reflectors, brackets and mounting positions are checked for damage, movement and contamination.
Electrical Inputs
Cables, plugs, terminals, input signals and control response are checked where the sensor appears present but the machine still faults.
Position Signals
Turntable home, carriage position, upper/lower limits and proximity sensors are reviewed where movement is blocked or inconsistent.
Sequence Logic
We check what the machine is waiting for: pallet present, home position, carriage position, film movement, safety reset or valid start condition.
Why Sensor Faults Are Not Always Sensor Faults
Replacing the sensor is sometimes the correct repair. But many sensor faults are caused by alignment, contamination, vibration, poor target visibility, wiring damage or another machine condition blocking the sequence.
The Hidden Causes
Sensors do not work in isolation. They sit inside a machine sequence. If a wrapper is waiting for a signal that never arrives, the fault may be upstream or downstream of the sensor itself.
- ✓ A clean sensor can still be misaligned.
- ✓ A working sensor can still lose signal through damaged wiring.
- ✓ A pallet can be present but not visible to the sensor.
- ✓ A safety input can block movement even if the cycle looks ready.
The Useful Question
Not simply: “is the sensor broken?”
The correct question is: is the machine receiving the right input, from the right device, at the right time in the wrapping sequence?
Our Diagnosis Process
We keep the process controlled. No random sensor swapping, no unsafe bypassing, no repeated resets without understanding which signal is missing.
Define The Fault
We identify whether the issue is pallet detection, load height, film break detection, position sensing, safety reset or cycle sequencing.
Inspect The Device
Sensor condition, bracket position, lens condition, reflectors, cable entry and visible damage are checked first.
Check The Signal
We consider whether the sensor is switching correctly and whether the control system is receiving the expected input.
Test Under Real Conditions
The wrapper is reviewed with actual pallets, actual load surfaces and actual operating behaviour where possible.
Review Safety Conditions
Safety circuits, guards, light curtains and reset conditions are considered where movement is blocked.
Recommend The Correct Fix
You get a practical engineer-led recommendation based on the signal path and machine sequence.
Related Fault Diagnosis Pages
Sensor faults often connect to pallet detection, rotation faults, carriage faults, automatic wrapper sequence problems and wider diagnostics.
Pallet Wrapper Not Detecting Pallet
For photoeye, photocell, height detection and machine sequence faults.
View detection faultPallet Wrapper Not Rotating
For wrappers that power up but do not rotate, hesitate or fault when the cycle begins.
View rotation faultPallet Wrapper Carriage Fault
For carriage lift issues, pre-stretch faults, roller wear and film path problems.
View carriage faultAutomatic Wrapper Not Cutting Film
For automatic wrapper clamp, cut, heat seal, pressure and timing faults.
View auto faultStretch Wrapper Keeps Snapping Film
For repeated film breaks, tension faults, carriage issues and load contact problems.
View film snappingPallet Wrapper Diagnostics
Fault-finding across mechanical, electrical, film and operational wrapper issues.
View diagnosticsPallet Wrapper Repair
Repair support for pallet wrappers with mechanical, electrical or wrapping faults.
View repairEmergency Wrapper Repair
Support for urgent machine stoppages, breakdowns and dispatch-critical faults.
View emergency repairFAQ
Why is my pallet wrapper showing a sensor fault?
Can a dirty sensor stop a pallet wrapper from working?
Can a sensor fault cause the wrapper to stop mid-cycle?
Do sensor faults always mean the sensor needs replacing?
Do Excelerate repair pallet wrapper sensor faults?
Sensor Fault? Diagnose The Wrapper Properly.
If a pallet wrapper is repeatedly faulting on sensors, the site needs more than resets, wipes and guesswork. Excelerate can inspect the machine, identify the missing or unstable input and recommend the correct repair route.
